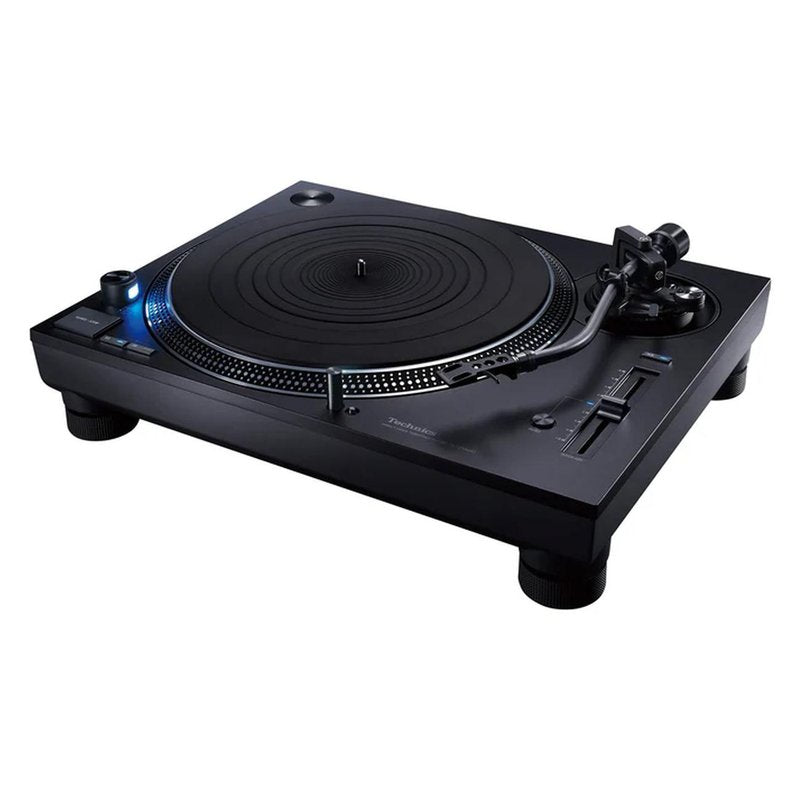

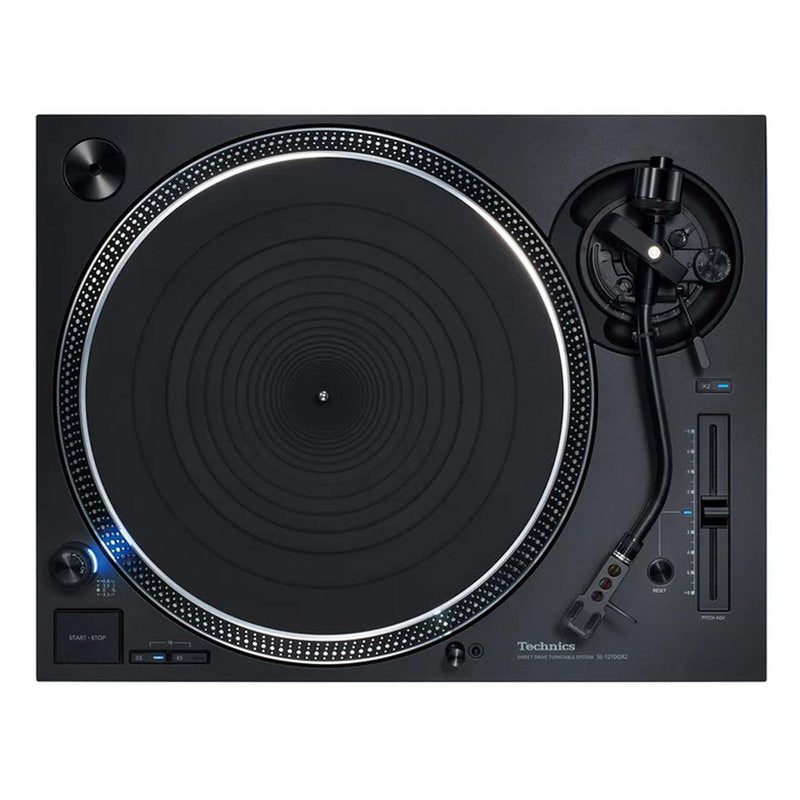

TECHNICS SL1210GR2 Turntable

The first stage of Technics new generation of direct drive turntables with an improved motor-drive circuit centered on the newly developed AE-Drive (Delta Sigma Drive), the SL-1200GR2 is the new standard turntables, inviting more audio enthusiasts to enjoy music with the rich, robust sound of analogue records.

Fusing Technics traditional analog and digital technologies, the SL-1210GR2 is the new standard in direct drive turntable systems.
With a revolutionary new drive control method for smooth, accurate rotational stability and a new power supply for an exceptionally low noise floor
the new generation turntable outperforms the usual standards of its class, for rich, robust sounds and true high-fidelity listening.

* Coreless direct drive motor achieving stable rotation
* Low-noise, low-voltage power circuit and a switching power supply
* AE-Drive suppresses vibrations from the motor for smoother, more accurate rotation
* Tonearm achieving high initial-motion sensitivity
* Two-layer platter with high rigidity and vibration damping
* High-rigidity body and high-damping silicon insulators for smooth sound and isolation from various vibrations
* Power Supply AC 120 V, 60 Hz
* Power Consumption 11 W, Approx.
0.3 W (OFF)
* Dimensions (W x H x D) 453 x 173 x 372 mm (17-27/32 × 6-13/16 × 14-21/32 inch)
* Weight Approx.
11.5 kg (Approx.
25.35lbs)
* Accessories Turntable, Turntable sheet, Dust cover, EP record adaptor, Balance weight, Auxiliary weight, Cartridge spacer Head shell, Overhang gauge, Screw set for cartridge, PHONO cable, PHONO earth lead, AC power supply cord, Owner's Manual
* Operating humidity range 35% to 80% RH (no condensation)
* Audio Output PHONO (Pin Jack) x 1, EARTH TERMINAL x 1
* Tonearm Section: Type Static Balance
* Effective Length 230 mm (9-1/16-in)
* Overhang 15 mm (19/32-in)
* Tracking Error Angle Within 2 Degrees 32' (at the outer groove of 30 cm record), Within 0 Degrees 32' (at the inner groove of 30 cm record)
* Offset Angle 22 Degrees
* Arm-height Adjustment Range 0 - 6 mm
* Stylus Pressure Adjustment Range 0 - 4 g (Direct Reading)
* Head Shell Weight Approx.
7.6 g
* Applicable Cartridge Weight Range (without auxiliary weight) 5.6 - 12.0 g 14.3 - 20.7 g (including head shell) (with auxiliary weight) 10.0 - 16.4 g 18.7 - 25.1 g (including head shell)
* Cartridge Mounting Dimension 12.7 mm (1/2-in) interval
* Head Shell Terminal Lug 1.2 mmf 4-pin terminal lug
* Turntable Section
* Type Direct Drive Turntable
* Motor Brushless DC Motor
* Turntable Speeds 33-1/3, 45 and 78 r/min
* Adjust Range +/-8 %, +/-16 %
* Starting Torque 2.2 kg-cm
* Build-up Characteristics 0.7 s.
from Standstill to 33-1/3 r/min
* Braking System Electronic Brake
* Wow And Flutter 0.025 % W.R.M.S.
* Rumble 78 dB (IEC 98A weighted)
* Turntable Platter Aluminum diecast, Diameter: 332 mm, Weight: Approx.
2.5 kg (5.51 lb) (Including rubber sheet)
